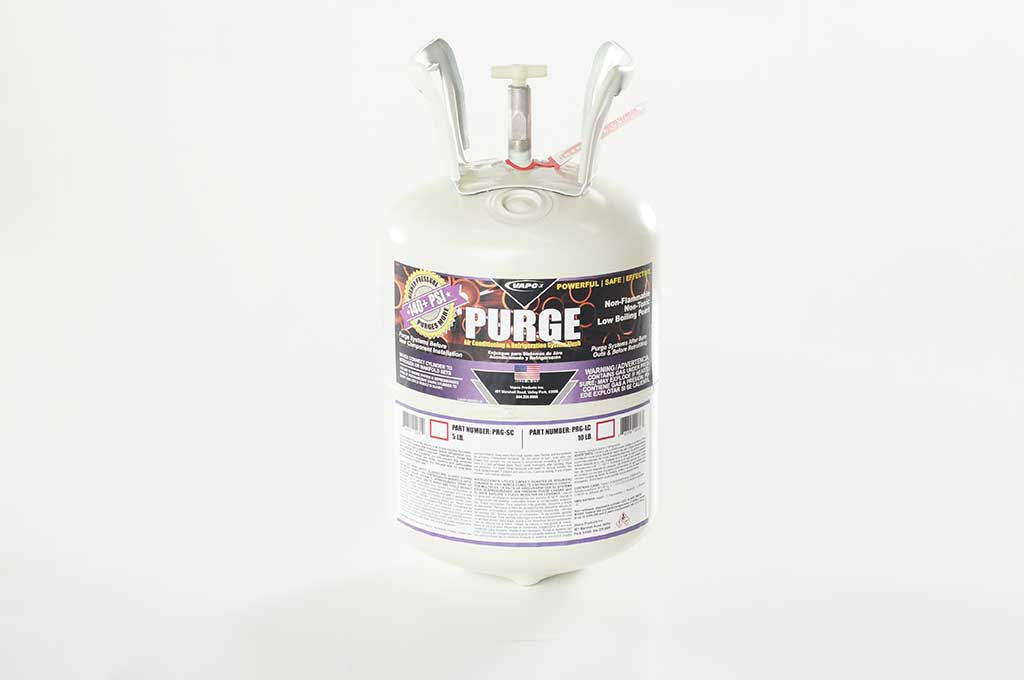

PURGE LINE SET FLUSH – 5 AND 10LB CANISTER
PURGE LINE FLUSH SET 5 AND 10LB CANISTERS provide plenty of high pressure cleaning, retrofitting and change-out power for multiple jobs up to 60 Tons when using the 10LB canister.
PURGE LINE FLUSH SET is a powerful, environmentally friendly, and economical solvent that is used to flush Air Conditioning and Refrigeration line sets during installs, cleanings, retrofits, change-outs or after burnouts. By seeing the solvents from boiling off too fast, the advanced formula removes more oil and other contaminants than any other flush. In addition to being available as a liquid, it is also available as a canister and flush kit. Flushes a wide variety of particulates from line sets when used such as sludge, carbon residues, acids, oils, and water. It is also ideal for change-outs, compressor burnouts, retrofitting to new refrigerants, and component changes.
Features and Benefits:
- Industry-standard for flushing, cost-effective
- No premature boil off, and leaves no residue
- Non-flammable, non-toxic
- Rinses away a variety of participants: sludge, carbon, acids, oils, and water
Part Number; Size
- PRG-SC 5LB CANISTER
- PRG-LC 10LB CANISTER
Directions:
GENERAL DIRECTIONS: Use in a well-ventilated area in temperatures above 60°F. Review the configuration of the system before using the product. Consider cleaning the condenser, evaporator, and line sets separately before application. For larger systems, disassemble and clean in sections. Then, remove filter driers/cores, bypass thermostatic expansion valves, compressor, accumulators, receivers, reversing valves, etc. Never inject into the compressor and if possible, crimp or restrict the line set. This allows for added vigor during the procedure. Be sure to use an open container to catch the oil and debris from the procedure.
DANGERS & PRECAUTIONS

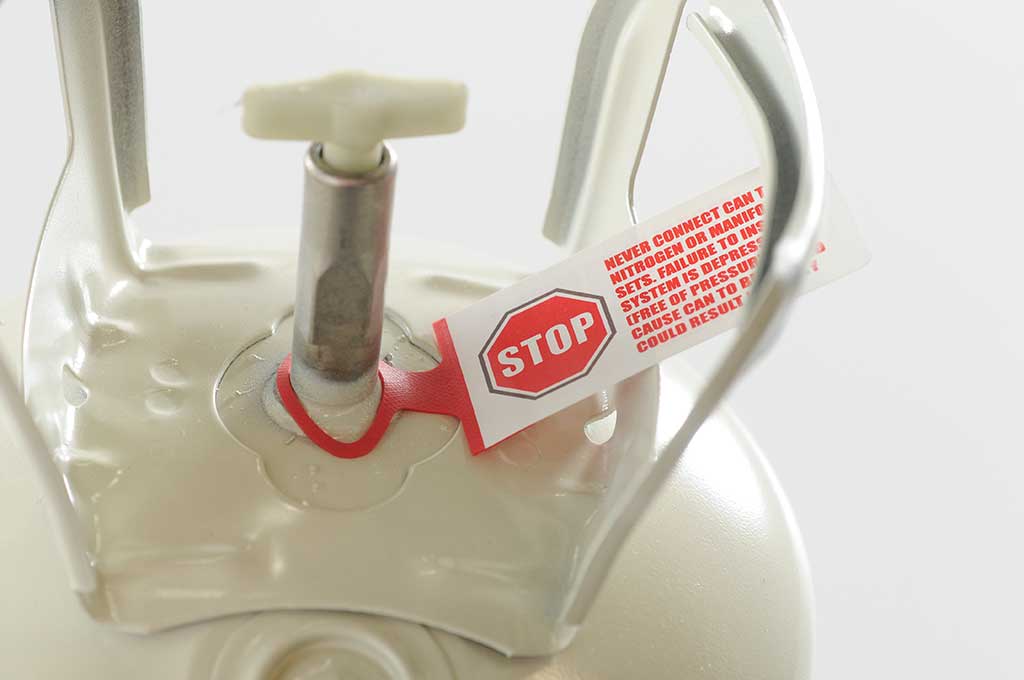

Flammable. Vapors may be irritating to eyes, nose, throat, and lungs and may be harmful if swallowed. Wear safety glasses and gloves during use. Never connect the can to nitrogen or manifold sets. Failure to ensure system is pressurized (Free of Pressure) May cause can to burst and could result in injury.
HANDLING: Avoid contact with skin, eyes, and clothing. Avoid breathing vapors or mist.
STORAGE: Store in a cool place. Protect from contamination and keep the container tightly closed in a dry and well-ventilated place. Store in the original container. Avoid freezing temperatures. If stored below -10°C (14°F), mix prior to use.
WASTE DISPOSAL: The product should not be allowed to enter drains, watercourses, or the soil. All hazard precautionary measures should be followed.
Other Purge Products & Accessories
PRG-HGK – Cylinder Kit (Gun and Hose)
PRG-SPR – Purge Line Set Flush Gun
Spray Tip Assembly Directions
When replacing your spray tip (or troubleshooting a leaking/clogged gun or one that will not stop spraying) … ensure that the spray tip is assembled in the order shown below.
Instructions:
- Place spray tip (No.3) into nut (No. 4). Ensure tip protrudes from nut.
- Place seat (No. 2) into nut (No. 4) with flat side facing (and sitting atop) spray tip.
- Screw assembled spray tip onto spray gun (No. 1).
- Tighten with wrench.
Important: Seat (No. 2) needs to be placed with flat side facing spray tip (protrusion facing spray gun). If the seat is positioned incorrectly, the spray gun may not work properly (leaking, clogging, constant spraying and other problems may arise).
